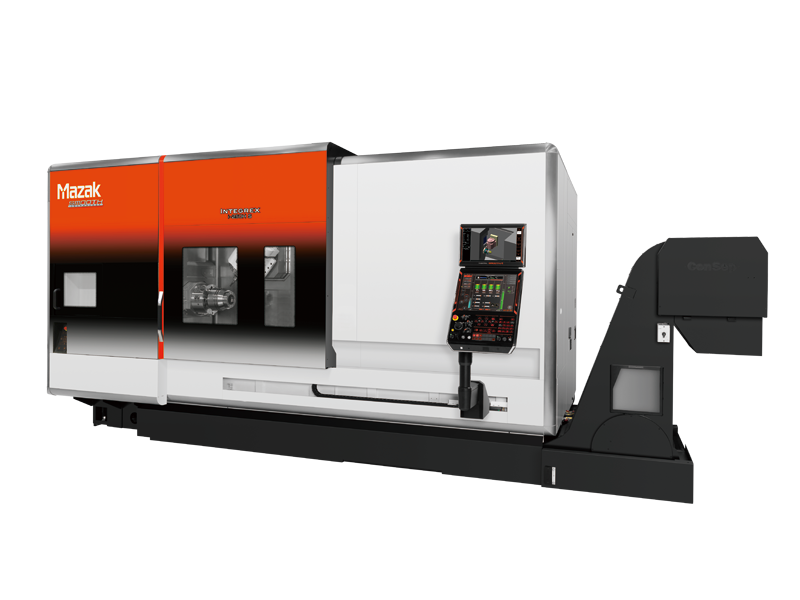

INTEGREX i-350H S
INTEGREX i-350H S
The latest generation INTEGREX i-350H S combines turning and B-axis milling operations in a compact machine tool
- Specially designed for integration with automation systems
- 38 Tool Magazine
- Highly advanced MAZATROL SmoothAI CNC control
| 1500 mm Bed (Universal) | Values | |
|---|---|---|
| CAPACITY: | Chuck diameter main spindle | 10 " |
| Main spindle diameter | 10 " | |
| Max. turning diameter | 670 mm | |
| Max. rod diameter (main spindle) | 80 mm | |
| Max. rod diameter (sub-spindle) | 80 | |
| MAIN SPINDLE | Max. speed | 4,000 min-¹ |
| Motor power (40% ED) | 30.0 KW | |
| Sub-spindle | Max. speed | 4,000 min-¹ |
| Engine power (40% ED) | 26.0 KW | |
| Powered head | Max. speed driven tool | 12,000 min-¹ |
| ASSEN | X-axis | 695 mm |
| Z-axis | 1,585 mm | |
| Y-axis | 300 mm | |
| B-axis | 240° (-30° ~ +210°) | |
| W-axis | 1,539 mm | |
| AUT. TOOL CHANGE/MAGAZINE | Warehouse capacity | 38 |
